The SuperCAT4+ range of locators and transmitters offers a versatile solution for locating specific buried assets, using a selection of passive, sonde, and active frequencies. With Radiodetection’s familiar C.A.T controls and display, you’ll easily access these advanced capabilities, minimising retraining.
For oil and gas pipes with a Cathodic Protection System, the CPS model locates the rectified signal without needing an extra transmitter.
The S model locates various sonde frequencies, ideal for tackling the challenges of finding water and drain pipes. Use a lower frequency sonde for tracing deep cast-iron pipes, while higher frequency sondes are easier to distinguish in electronically noisy urban environments.
With SuperCAT4+, you can locate a wide range of active frequencies to detect and trace various cable types in diverse conditions. Higher frequencies, such as 131kHz or 65kHz, are perfect for finding well-insulated utilities like twisted-pair telecom cables or insulated pipe joints. For long-range locating of lower resistance cables, like power lines, choose from lower frequency options.
In short, the SuperCAT4+ is your all-in-one tool for efficient and accurate underground utility location.
TocDem Utilities beats the competition on price, quality, and after-sales support with all our Ground Penetrating Radars. We’re dedicated to helping you long after your purchase, with all parts and accessories in stock. Our re-calibration service in the well-established workshop is fast and reliable. Additionally, our engineers have over 100 years of combined experience in electronics and hydraulics.
We also invest in our people and we provide constant training on the latest techniques. As a Radiodetection GOLD distributor, we’re your go-to source for underground cable location, survey, ground penetrating radars, and many other accessories. Our friendly team can help with national and international shipping and customs clearance.
All SuperCAT4+ models come with a range of features designed to aid safe working practices.

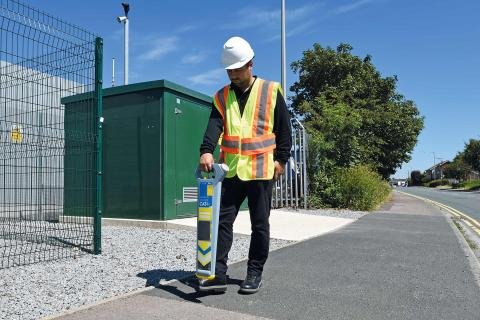

High levels of electrical interference, as found around substations and near high-voltage transmission cables can overload sensitive electronics. Dynamic Overload Protection filters this interference out, enabling SuperCAT4+ to continue locating where other units struggle.
StrikeAlert warns the user to the possible presence of shallow cables and utility lines in both Power and Active Line modes.
Although work practices and guidelines insist power cables are buried below a certain depth, a common cause of cable strikes is unexpectedly shallow cables.
Indicates depth when the locator is oriented correctly above the target cable, pipe or sonde for the most accurate reading.
The audio signals emitted by the SuperCAT4+ are derived from the signals detected. Radio, Power and Active signals can be easily distinguished from each other, and from background noise, helping identification of target utilities, and aiding differentiation of closely co-located utilities.
Applications
Locate pipelines protected by a Cathodic Protection System
Optimized for metal pipes including those that use rectified currents as part of their Cathodic Protection System. The CPS signal can be located and traced without the need to apply an additional transmitter signal to the pipeline
SuperCAT CPS Feature Summary
* Choose between M (Metric) or I (Imperial) locator models
** Power frequency and corresponding active low frequency set by model , (50Hz – 640Hz and 60Hz – 512 Hz)
CPS
SuperCAT4+ CPS models are optimized to detect CPS signals to allow tracing of protected pipelines without disconnecting rectifiers.
Find water and drain pipes
Find water and drain pipes
SuperCAT4+S and T1-512/640
For the challenge of detecting and tracing buried pipes, the SuperCAT4+ S locates the widest range of sonde frequencies.
Additionally, an active 33kHz frequency can be applied to a Flexitrace using a T1-512/640 for continuous signal tracing.
SuperCAT S summary of features
*Choose between M (Metric) or I (Imperial locator Models
** Power frequency and corresponding active low frequency set by model, (50Hz – 640Hz and 60Hz – 512 Hz)
Sondes enable non-metallic pipes to be accurately traced, depth determined and the position of blockages accurately identified.
Flexitrace
Connect the T1 to a Flexitrace to radiate a continuous tracing signal from non-metallic pipes and conduits.
Detect a broad range of utilities
SuperCAT4+ and T1 Range
Designed to meet the demanding environments of the construction industry, this multi-utility locator can be used with a wide range of sondes and accessories.
SuperCAT4+ is compatible with all T1 Transmitters. Higher frequency transmitters are recommended for high-impedance cables. Lower frequency signals travel further on lower-impedance services.
SuperCAT+ summary of features
*Choose between M (Metric) or I (Imperial locator Models
** Power frequency and corresponding active low frequency set by model, (50Hz – 640Hz and 60Hz – 512 Hz)
Signal Clamping
Safely apply a T1 signal to a pipe or live cable up to 125mm/5” diameter without interrupting the supply.
Direct Connection
The most effective method for connecting to a valve, meter, junction box or other access point, as long as access is possible.
Induction
Conveniently apply a transmitter signal to a pipe or cable when, direct connection or signal clamping is not possible.
