TMC SERIESpower and versatility

TMC SERIESMULTI KITS

TMC SERIESMULTI-SYSTEM MASTER HEAD / DRIVE UNIT

TMC Model U.M. TMC 6 TMC 8 TMC 12 TMC 16 TMC 20 TMC 26
PRICE + VAT (GBP) £10,500 £15,500 £22,500 £27,500 £32,500 £34,500
EXCAVATOR WEIGHT Tonne 4.0 - 8.0 7.0 - 11.0 12.0 - 15.0 14.0 - 19.0 21.0 - 28.0 26.0 - 36.0
lbs 8,800 - 17,600 15,400 - 24,200 26,200 - 33,000 30,800 - 41,800 46,200 - 61,600 57,200 - 79,200
EQUIPMENT WEIGHT Kg 324 545 750 1,040 1,480 1,670
lbs 714 1,202 1,653 2,293 3,263 3,682
OIL PRESSURE Bar 250 300 300 340 340 340
Psi 3,625 4,351 4,351 4,641 4,641 4,641
OIL CAPACITY L/min 30 - 50 140 - 180 150 - 160 200 - 240 250 - 300 280 - 350
g/min 7 - 13 37 - 48 39 - 42 58 - 63 58 - 68 63 - 79
ROTATION OIL PRESSURE Bar 50 60 60 140 140 140
Psi 725 870 870 2,030 2,030 2,030
ROTATION OIL CAPACITY L/min 15 25 25 - 30 25 - 30 25 - 30 25 - 30
g/min 1.3 6.6 8 8 8 8
TMC Model U.M. TMC 32 TMC 42 TMC 52 TMC 82 TMC 115
PRICE + VAT (GBP) £37,500 £39,500 £45,000 £95,000 £140,000
EXCAVATOR WEIGHT Tonne 30.0 - 38.0 36.0 - 50.0 50.0 - 70.0 80.0 - 100.0 85.0 - 130.0
lbs 66,000 - 83,600 79,200 - 110,000 110,000 - 154,000 176,000 - 220,000 187,000 - 286,000
EQUIPMENT WEIGHT Kg 2,300 2,850 3,800 5,220 7,300
lbs 5,071 6,283 8,378 11,508 16,094
OIL PRESSURE Bar 340 340 340 340 340
Psi 4,641 4,641 4,931 4,931 4,931
OIL CAPACITY L/min 280 - 360 300 - 350 300 - 380 400 - 500 500 - 600
g/min 63 - 79 79 - 92 79 - 100 106 - 132 132 - 158
ROTATION OIL PRESSURE Bar 140 140 140 140 140
Psi 2,030 2,030 2,030 2,030 2,030
ROTATION OIL CAPACITY L/min 25 - 30 25 - 30 25 - 30 50 - 60 50 - 60
g/min 8 8 16 16 16

TMCSERIESCRUSHER KIT

Crush and break down special concrete structures.

TMC Model U.M. TMC 6 TMC 8 TMC 12 TMC 16 TMC 20 TMC 26
PRICE + VAT (GBP) £4,500 £6,500 £9,500 £10,500 £12,500 £16,500
OPENING (A) mm 410 525 670 710 800 850
in 16.15 20.7 26.4 27.95 31.5 33.5
LENGTH (B) mm 1,020 1,446 1,680 1,900 2,050 2,200
in 40.2 56.9 66.1 74.8 80.7 86.6
WIDTH (P) mm 250 350 475 520 540 540
in 9.85 13.78 18.7 20.47 21.26 21.26
EXCAVATOR WEIGHT Tonne 4.0 - 8.0 7.0 - 11.0 12.0 - 15.0 14.0 - 19.0 21.0 - 28.0 26.0 - 36.0
lbs 8,800 - 17,600 15,400 - 24,200 26,200 - 33,000 30,800 - 41,800 46,200 - 61,600 57,200 - 79,200
EQUIPMENT WEIGHT Kg 76 175 250 360 420 780
lbs 168 386 551 794 926 1,720
TMC Model U.M. TMC 32 TMC 42 TMC 52 TMC 82 TMC 115
PRICE + VAT (GBP) £18,500 £24,500 £34,500 £42,500 £48,500
OPENING (A) mm 920 1,150 1,300 1,700 1,900
in 36.2 45.28 51.18 66.93 74.8
LENGTH (B) mm 2,420 2,600 2,850 3,200 3,500
in 95.3 102.4 112.2 126 137.8
WIDTH (P) mm 550 600 810 1,110 1,240
in 21.65 23.62 31.89 43.7 48.82
EXCAVATOR WEIGHT Tonne 30.0 - 38.0 36.0 - 50.0 50.0 - 70.0 80.0 - 100.0 85.0 - 130.0
lbs 66,000 - 83,600 79,200 - 110,000 110,000 - 154,000 176,000 - 220,000 187,000 - 286,000
EQUIPMENT Kg 820 950 1,400 2,580 3,500
lbs 1,808 2,094 3,086 5,688 7,716

TMCSERIESSHEAR KIT

Ideal for cutting ferrous materials, including structural steel, pipelines, tanks, sheets and ferrous wrecks.

TMC Model U.M. TMC 6 TMC 8 TMC 12 TMC 16 TMC 20 TMC 26
PRICE + VAT (GBP) £6,500 £9,000 £10,500 £11,500 £14,500 £17,500
OPENING (A) mm 340 270 370 360 460 540
in 13.4 10.7 13.8 14.2 18.1 20.1
LENGTH (B) mm 1,050 1,466 1,545 1,740 1,910 2,100
in 41.33 57.71 60.82 68.5 75.19 82.68
WIDTH (C) mm 280 370 340 360 400 400
in 11.02 14.57 13.38 14.17 15.75 15.75
EXCAVATOR WEIGHT Tonne 4.0 - 8.0 7.0 - 11.0 12.0 - 15.0 14.0 - 19.0 21.0 - 28.0 26.0 - 36.0
lbs 8,800 - 17,600 15,400 - 24,200 26,200 - 33,000 30,800 - 41,800 46,200 - 61,600 57,200 - 79,200
EQUIPMENT WEIGHT Kg 92 180 240 400 430 700
lbs 203 397 529 882 948 1,543
TMC Model U.M. TMC 32 TMC 42 TMC 52 TMC 82 TMC 115
PRICE + VAT (GBP) £19,500 £26,000 £35,000 £43,000 £50,000
OPENING (A) mm 560 620 700 750 800
in 22 24.4 27.6 29.5 31.5
LENGTH (B) mm 2,300 2,430 2,525 2,610 2,815
in 92.55 95.66 99.41 102.76 110.83
WIDTH (C) mm 410 430 485 520 555
in 16.14 16.92 19.09 20.47 21.85
EXCAVATOR WEIGHT Tonne 30.0 - 38.0 36.0 - 50.0 50.0 - 70.0 80.0 - 100.0 85.0 - 130.0
lbs 66,000 - 83,600 79,200 - 110,000 110,000 - 154,000 176,000 - 220,000 187,000 - 286,000
EQUIPMENT WEIGHT Kg 780 1,100 1,580 2,000 2,500
lbs 1,720 2,425 3,483 4,409 5,511

TMCSERIESPULVERISER KIT

Suitable for secondary demolition. It separates the rod from the concrete.

TMC Model U.M. TMC 6 TMC 8 TMC 12 TMC 16 TMC 20 TMC 26
PRICE + VAT (GBP) £4,500 £6,500 £9,500 £10,500 £12,500 £16,500
OPENING (A) mm 310 500 570 650 800 830
in 12.2 19.7 23.6 26.8 31.5 32.7
LENGTH (B) mm 1,020 1,486 1,715 1,920 2,080 2,210
in 40.16 58.5 67.52 75.59 81.89 87
WIDTH (C) mm 250 390 510 540 570 510
in 9.84 15.35 20.08 21.26 22.44 20.08
EXCAVATOR WEIGHT Tonne 4.0 - 8.0 7.0 - 11.0 12.0 - 15.0 14.0 - 19.0 21.0 - 28.0 26.0 - 36.0
lbs 8,800 - 17,600 15,400 - 24,200 26,200 - 33,000 30,800 - 41,800 46,200 - 61,600 57,200 - 79,200
EQUIPMENT WEIGHT Kg 100 250 310 420 500 820
lbs 220 551 683 926 1,102 1,808
TMC Model U.M. TMC 32 TMC 42 TMC 52 TMC 82 TMC 115
PRICE + VAT (GBP) £18,500 £24,500 £34,500 £42,500 £48,500
OPENING (A) mm 920 980 1,100 1,600 1800
in 35.4 38.6 43.3 63 70.9
LENGTH (B) mm 2,450 2,600 2,870 3,355 3685
in 96.46 102.36 112.99 132.09 145.08
WIDTH (C) mm 550 600 870 1,265 1425
in 21.65 23.62 34.25 49.8 56.1
EXCAVATOR Tonne 30.0 - 38.0 36.0 - 50.0 50.0 - 70.0 80.0 - 100.0 85.0 - 130.0
lbs 66,000 - 83,600 79,200 - 110,000 110,000 - 154,000 176,000 - 220,000 187,000 - 286,000
EQUIPMENT Kg 850 1,250 1,620 2,800 3,800
lbs 1,874 2,756 3,571 6,173 8,378

TMCSERIESCOMBI CUTTER KIT

Designed for tackling concrete and metallic structures during mixed demolitions.

TMC Model U.M. TMC 12 TMC 16 TMC 20 TMC 26 TMC 32
PRICE + VAT (GBP) £8,000 £10,000 £14,000 £17,000 £20,000
OPENING (A) mm 660 720 830 865 870
in 26 28.34 32.68 34.05 34.25
LENGTH (B) mm 1,695 1,955 2,115 2,230 2,485
in 66.73 70.08 83.27 87.79 97.83
WIDTH (P) mm 490 575 605 570 615
in 19.29 22.64 23.82 22.45 24.21
EXCAVATOR WEIGHT Tonne 12.0 - 15.0 14.0 - 19.0 21.0 - 28.0 26.0 - 36.0 30.0 - 38.0
lbs 26,200 - 33,000 30,800 - 41,800 46,200 - 61,600 57,200 - 79,200 66,000 - 83,600
EQUIPMENT WEIGHT Kg 300 430 470 750 780
lbs 661 948 1,036 1,653 1,720
TMC Model U.M. TMC 42 TMC 52 TMC 82 TMC 115
PRICE + VAT (GBP) £26,000 £35,500 £44,500 £49,500
OPENING (A) mm 1,100 1,300 1,600 1,750
in 43.3 51.2 63 68.9
LENGTH (B) mm 2,500 2,750 3,015 3,270
in 98.42 108.27 118.7 128.74
WIDTH (P) mm 500 750 925 1,010
in 19.68 29.52 36.42 39.76
EXCAVATOR WEIGHT Tonne 36.0 - 50.0 50.0 - 70.0 80.0 - 100.0 85.0 - 130.0
lbs 79,200 - 110,000 110,000 - 154,000 176,000 - 220,000 187,000 - 286,000
EQUIPMENT WEIGHT Kg 1,150 1,350 2,550 3,750
lbs 2,535 2,976 5,622 8,267

TMCSERIESUNIVERSAL KIT

Designed for primary and secondary demolition, it simultaneously cuts metal bars and concrete.

TMC Model U.M. TMC 20 TMC 26 TMC 32 TMC 42
PRICE + VAT (GBP) £18,500 £21,500 £23,500 £30,000
OPENING (A) mm 630 770 800 820
in 24.8 30.3 31.5 32.3
LENGTH (B) mm 1,980 2,320 2,390 2,650
in 77.95 91.33 94.09 104.33
WIDTH (C) mm 470 470 500 650
in 18.5 18.5 19.68 25.59
EXCAVATOR WEIGHT Tonne 21.0 - 28.0 26.0 - 36.0 30.0 - 38.0 36.0 - 50.0
lbs 46,200 - 61,600 57,200 - 79,200 66,000 - 83,600 79,200 - 110,000
EQUIPMENT WEIGHT Kg 580 850 900 1,150
lbs 529 882 948 1,543
TMC Model U.M. TMC 52 TMC 82 TMC 115
PRICE + VAT (GBP) £36,500 £45,000 £53,500
OPENING (A) mm 1,000 1,400 1,565
in 39.4 55.1 61.61
LENGTH (B) mm 2,795 3,205 3,506
in 110.04 126.18 138.03
WIDTH (C) mm 795 1,115 1,246
in 31.3 43.9 49.06
EXCAVATOR WEIGHT Tonne 50.0 - 70.0 80.0 - 100.0 85.0 - 130.0
lbs 110,000 - 154,000 176,000 - 220,000 187,000 - 286,000
EQUIPMENT WEIGHT Kg 1,650 2,600 3,600
lbs 1,720 2,425 3,483

Enjoy your choice of TocDem TMC Multi Kits

The ultimate expression of functionality and versatility. One tool, multiple kits. The TocDem TMC Series allows for one body to have multiple attachments giving unrivaled flexibility. One tool can change between Shear, Primary Crusher, Secondary Pulveriser or Combi cutter at your leisure.

CLICK TO CALL FOR HELP & INFORMATION. WE WON'T BE BEATEN ON PRICE, QUALITY OR AFTER SALES SERVICE!

Why Choose TocDem Multi-Kits?

  • Entirely made in HARDOX and STRENX
  • Equipped with two powerful cylinders
  • Regenerative system available in selected models
  • Standard hydraulic rotation
  • Continuous and precise 360° rotation in both directions thanks to integrated hydraulic systems
  • Fast, accurate and efficient jaw positioning in any work condition
  • Ideal for excavators with long booms
Full Brochure Download

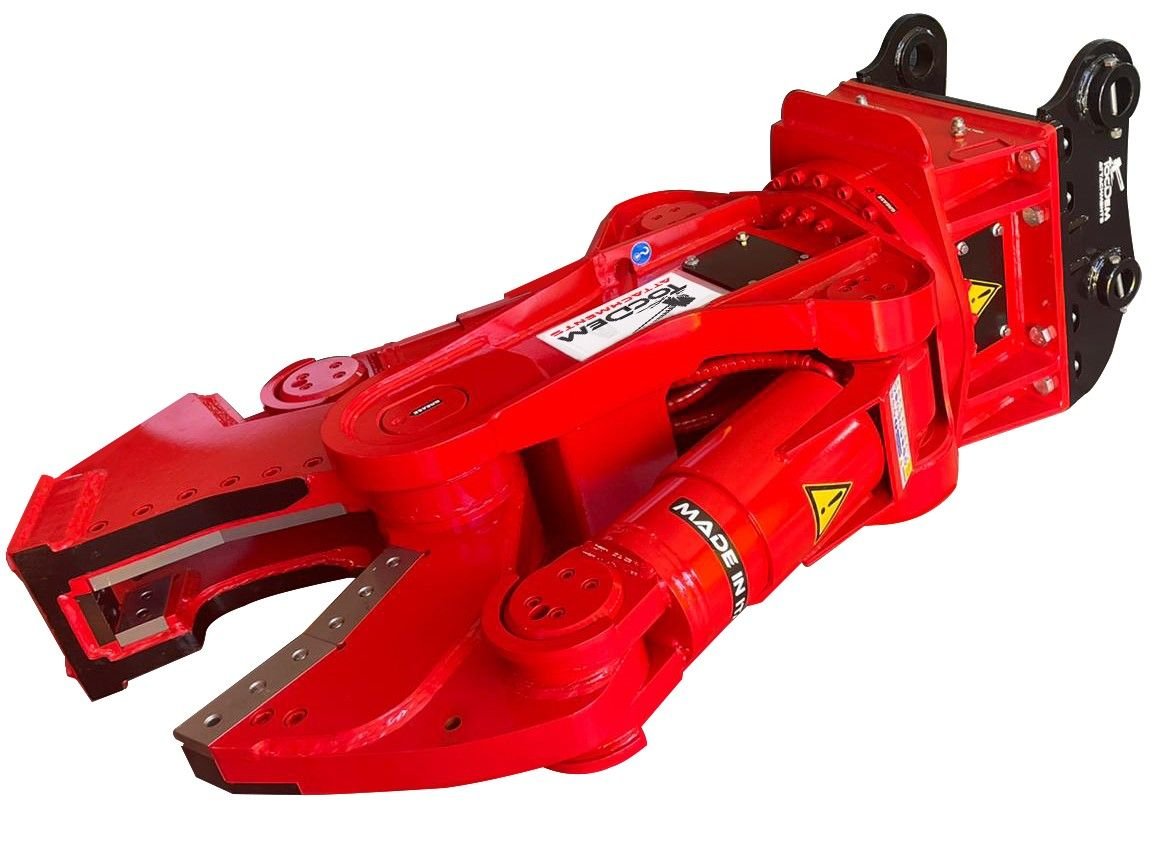

jpeg-optimizer_TMC 6 - Copy
jpeg-optimizer_TMC 2

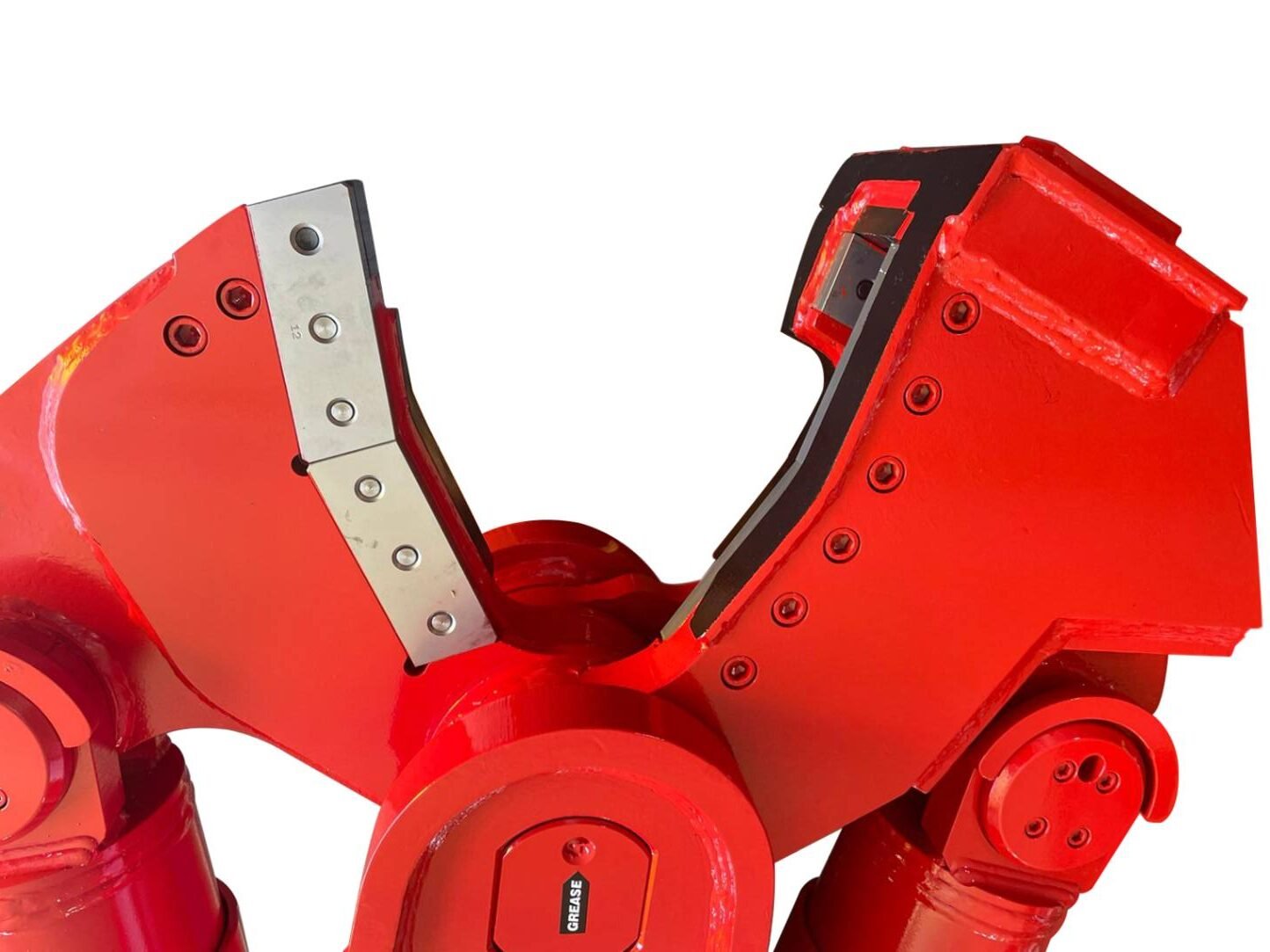

jpeg-optimizer_TMC 5

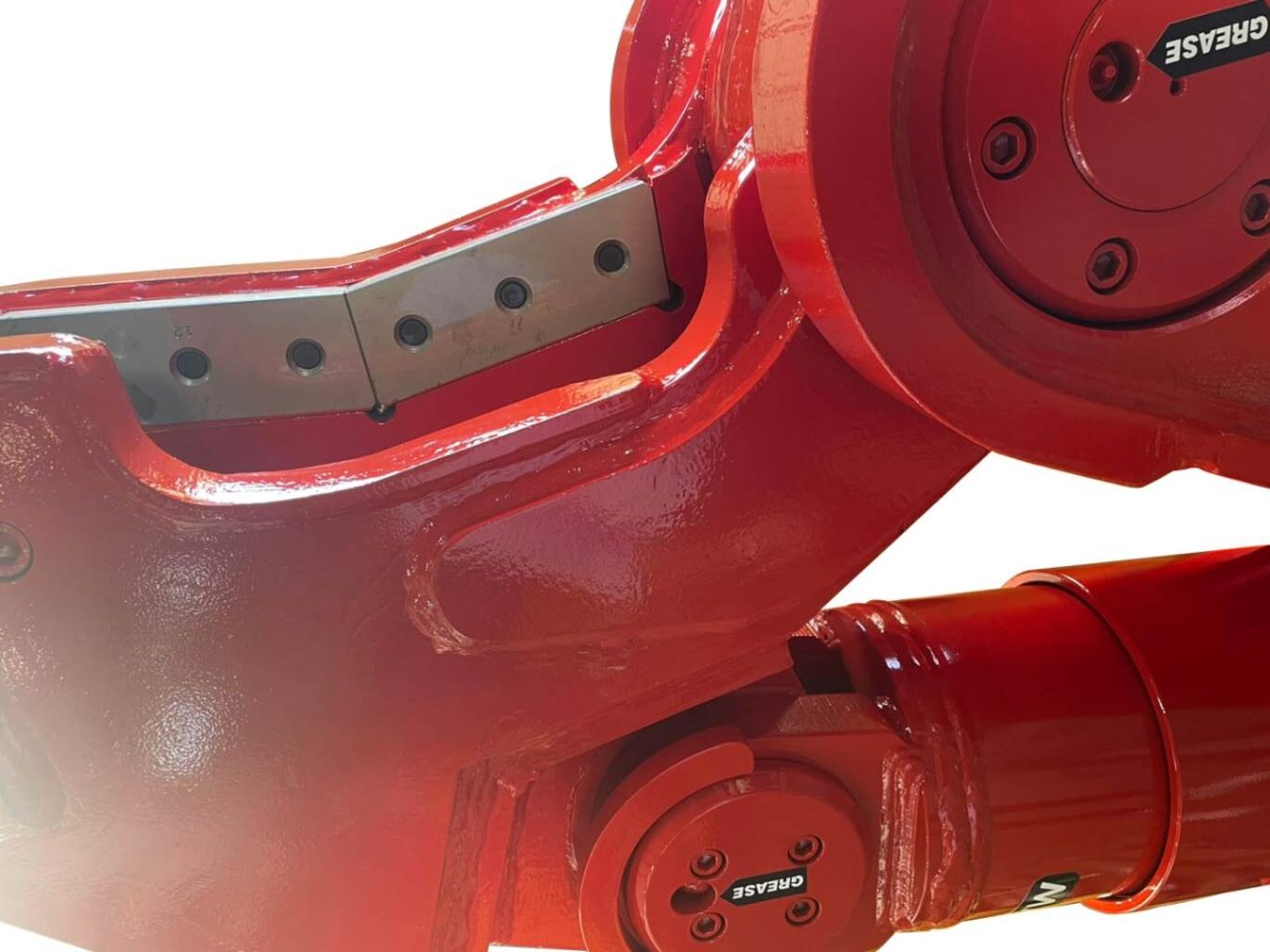

jpeg-optimizer_TMC 3

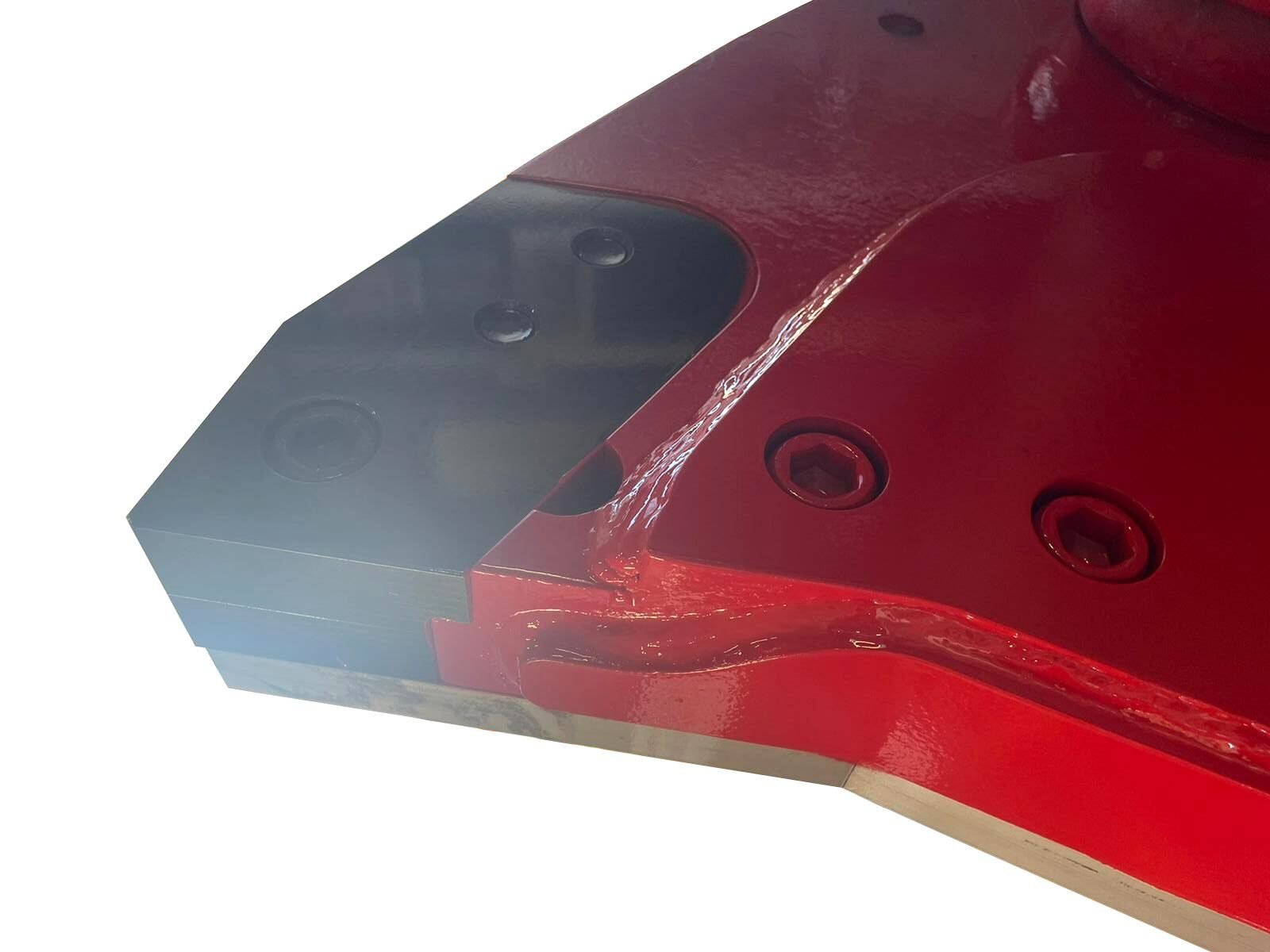

jpeg-optimizer_TMC 4
