TSH SERIESthe top of the scrap heap

TSH SERIESDEMOLITION & RECYCLING SCRAP SHEARS

Success!

Your details are sent to our sales team. We will contact you within 24 hours.

TSH Model U.M. TSH 8 TSH 14 TSH 20 TSH 26 TSH 36 TSH 42
PRICE + VAT (GBP) £23,950 £29,500 £32,500 £39,500 £49,500 £69,950
OPENING (A) mm 365 440 530 580 690 680
in 14 17 21 23 27 27
LENGTH (B) mm 1,880 2,450 2,785 2,840 3,170 3,660
in 74 96 110 112 125 144
WIDTH (C) mm 240 400 495 510 570 600
in 9 16 19 20 22 24
EXCAVATOR WEIGHT AT BUCKET POSITION Tonne 7.0 - 12.0 12.0 - 18.0 20.0 - 28.0 26.0 - 34.0 34.0 - 40.0 40.0 - 50.0
lbs 15,400 - 26,400 30,800 - 39,600 44,000 - 61,700 57,300 - 75,000 75,000 - 88,000 88,000 - 110,000
EXCAVATOR WEIGHT AT BOOM POSITION Tonne 4.0 - 7.0 7.0 - 10.0 14.0 - 18.0 16.0 - 22.0 22.0 - 30.0 26.0 - 35.0
lbs 8,800 - 15,400 15,400 - 24,200 30,800 - 39,600 35,000 - 48,500 48,500 - 66,000 57,200 - 77,000
WEIGHT Kg 640 1,250 2,030 2,530 3,200 3,910
lbs 1,411 2,756 4,475 5,578 7,055 8,620
OIL PRESSURE Bar 250 310 340 340 340 340
Psi 3,626 4,496 4,931 4,931 4,931 4,931
OIL CAPACITY L/min 80 - 100 150 - 220 200 - 220 200 - 260 240 - 300 300 - 350
g/min 21 - 26 40 - 58 53 - 58 53 - 68 63 - 79 79 - 92
ROTATION OIL PRESSURE bar 60 140 120 - 130 120 - 130 120 - 130 140
Psi 870 2,030 1,740 - 1,885 1,740 - 1,885 1,740 - 1,885 2,030
ROTATION L/min 20 30 20 - 30 20 - 30 50 - 60 30
g/min 5 8 5 - 8 5 - 8 13 - 16 8
HYDRAULIC ROTATION deg 360 360 360 360 360 360
TSH Model U.M. TSH 56 TSH 72 TSH 82 TSH 110 TSH 130
PRICE + VAT (GBP) £85,000 £95,000 £125,000 £179,950 £199,950
OPENING (A) mm 800 850 880 920 950
in 31 33 35 36 37
LENGTH (B) mm 4,100 4,700 4,800 5,000 5,300
in 161 185 189 197 209
WIDTH (C) mm 690 800 830 900 950
in 27 31 33 35 37
EXCAVATOR WEIGHT AT BUCKET PLACE Tonne 50.0 - 70.0 70.0 - 100.0 80.0 - 110.0 90.0 - 120.0 100.0 - 130.0
lbs 110,000 - 154,000 154,000 - 220,000 176,000 - 242,000 198,000 - 264,000 220,000 - 286,000
EXCAVATOR WEIGHT AT BOOM PLACE Tonne 30.0 - 45.0 45.0 - 60.0 50.0 - 70.0 70.0 - 90.0 90.0 - 110.0
lbs 66,000 - 99,000 99,000 - 132,000 110,000 - 154,000 154,000 - 198,000 198,000 - 242,000
WEIGHT Kg 5,630 6,900 7,800 9,950 11,500
lbs 12,412 15,212 17,196 21,936 25,353
OIL PRESSURE Bar 340 340 340 340 340
Psi 4,931 4,931 4,931 4,931 4,931
OIL CAPACITY L/min 350 - 450 350 - 400 400 - 500 500 - 800 700 - 900
g/min 92 - 119 92 - 106 106 - 132 132 - 211 185 - 238
ROTATION OIL PRESSURE bar 140 140 140 140 140
Psi 2,030 2,030 2,030 2,030 2,030
ROTATION OIL CAPACITY L/min 60 60 60 60 60
g/min 16 16 16 16 16
HYDRAULIC ROTATION deg 360 360 360 360 360

Enjoy your choice:

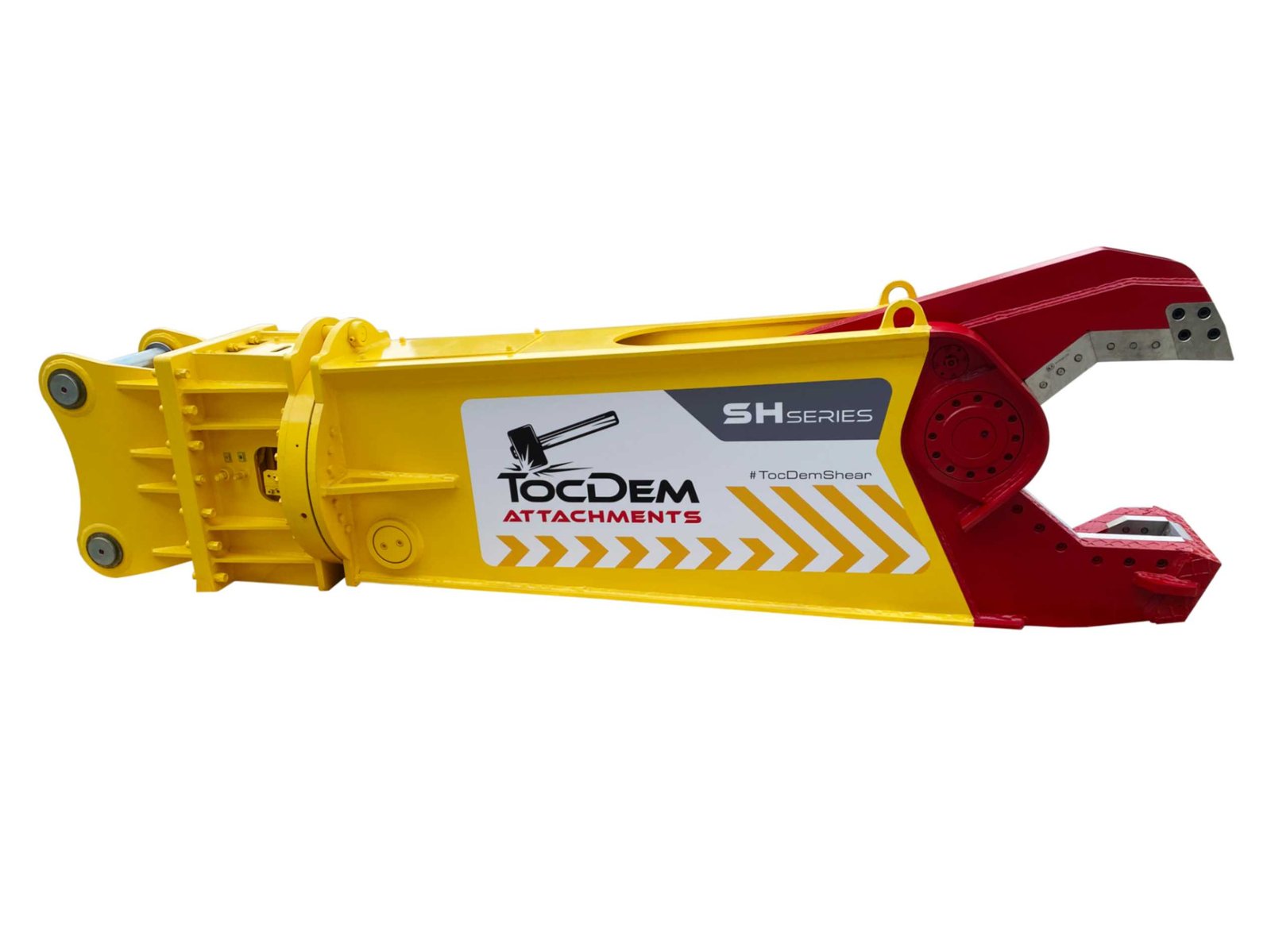

TocDem TSH 360 Degree Rotating Demolition & Scrap Recycling Shears are made entirely of HARDOX and STRENX, which makes them suitable for the demolition of tanks, pipes and structures in steel and iron.

The high cutting force ensures precise and fast work, thus guaranteeing maximum efficiency in all conditions.

CLICK TO CALL FOR HELP & INFORMATION. WE WON'T BE BEATEN ON PRICE, QUALITY OR AFTER SALES SERVICE!

CLICK HERE TO SEE SHEARS IN STOCK

Additional highlights of this series include:

Brochure Download Full Brochure Download

All items come fully setup & ready for work with hoses, pins & head bracket / hanger. 2 years warranty as standard.

Head bracket / hanger is made to your specification at point of order.

**Due to ongoing development, specifications may change at any time
